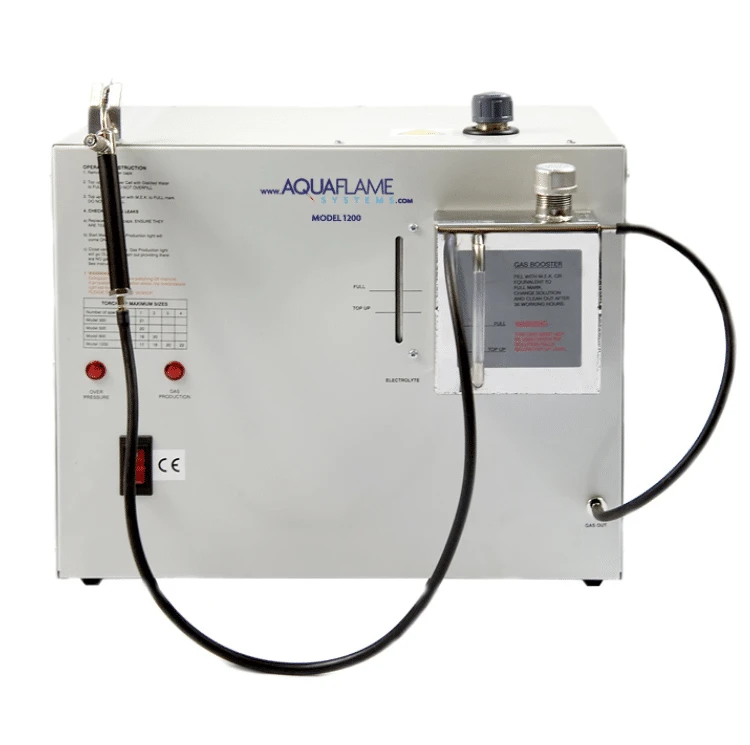

Aquaflame Micro Welder, Model 1200

Aquaflame Micro Welder, Model 1200

Aquaflame Systems provide solutions for micro soldering and acrylic flame polishing through a range of products. The Aquaflame range are high performance gas-generating units, producing a high temperature flame – in the range 1200-3300°C. Not only that but each Aquaflame product is a reliable, low cost and safe operating solution to your micro welding / edge polishing needs.

Employed extensively in the jewellery, dental and other technical manufacturing industries, the Aquaflame range provides solutions for individual traders and small retailers through to larger manufacturers. Our smaller machines are suited to single users, whereas our larger machines are capable of having 2-4 users working simultaneously.

The Perfect Tool for Flame Polishing

Aquaflame machines are also ideal for edge polishing of acrylic, as this method of polishing requires no other materials or compounds and can finish intricate shapes, in a single quick and easy operation. Overall, the clean flame and precise control of the Aquaflame Systems machines make them the ideal choice for precision soldering, micro welding and edge polishing acrylic. They are also great value and easy to use and adjust, which is perfect for small business and large manufacturers alike.

A Clean Flame

Using a standard electrical supply, hydrogen and oxygen are produced by the electrolysis of distilled water, in the correct ratio such that the hydrogen can be burnt in the oxygen, so producing a highly controllable, efficient high energy heat source. The only product of this process, other than energy, is water. A truly efficient clean and environmentally friendly process. Prior to this chemical reaction, mixed gases are passed through a gas atomiser and delivered to single or multiple torches via an output tube.

What Can Aquaflame Machines Be Used For?

The range of AquaFlame Systems machines is very versatile, and can be used in various industries. Some of the most popular uses are:

• Optical repairs
• Retipping a ring
• Precious metal recycling
• Micro precision welding
• Flame polishing acrylic
• Heavy weight bangles
• Dental equipment repairs
• Micro precision soldering
• Internal flame polishing

These are just some of the many uses of the AquaFlame machines. Others include fusing and working fibre optics, lost wax / wax assembly, columnar lime lights and producing thermocouple junctions – but the list could go on and on!

Their clean, super-high temperature flame combined with their ease of use makes them the ideal tool for industries that require precision soldering or high temperature flame polishing.

• Model 1200
• Reference number: LM137
• Gas production: 240 lt/h
• Distilled water use (per day): 100ml
• Maximum flame temperature: 3300c
• Electrical usage: 1.20 kW
• Flash back fitted: Yes
• Torch tips range supplied: 17-24
• Torch tips bore size supplied (mm): 1.00 – 0.31
• Maximum hose lengths (From Booster to Torch): 1.5m with 2 torches with No.18 tip
• Service recommended period: 4000 working hours
• Guarantee period: 2 years
• Length: 440mm
• Width: 320mm
• Height: 395mm
• Shipping weight: 49kg
• Chemical for flame positioning: MEK
• Thickness that can be polished in one pass: 15mm
• Typical polishing times (per metre): 3 mins

Other models are also available. Please download the brochure here for a side-by-side comparison.

MEK liquid and de-ionised water are also required in order to operate this micro welder.

PLEASE NOTE: This item is a special order and is not available for next day delivery. It is classed as a Hazardous Goods which reduces the choice of delivery options to ensure it is handled safely during transport.
